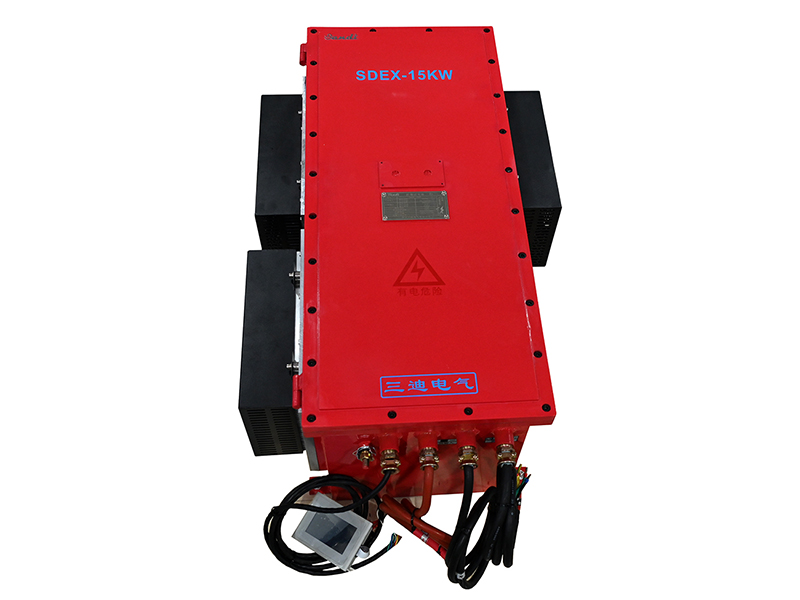

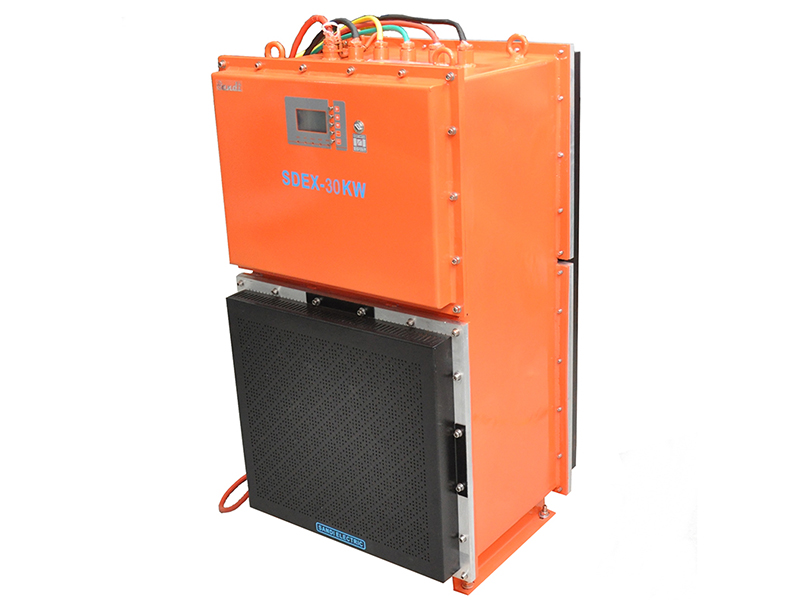

Explosion-proof inverter

Pure sine wave inverter used in hazardous areas for converting DC into AC power

Explosion-proof inverter is an electronic device that can convert DC power into AC power for use in flammable and explosive environments. This pure sine wave inverter can be customized according to specific requirements.

Applications

Hazardous locations in Zone 1 and Zone 2, such as coal mines, distilleries, gas stations, etc.
Explosive gas environments of IIA, IIB, and IIC levels, such as flour mills, aluminum powder plants, metal mines, graphite plants, etc.

Request a Quote

Features

Explosion-proof inverter adopts Mitsubishi's sixth-generation IPM module, with stable performance and a designed service life of over 15 years.
Cast aluminum alloy housing with surface spray coating.
Explosion-proof level is EXdIIBT4.
Built-in power frequency isolation transformer offers strong anti-interference capability.
Complete protection functions, including input undervoltage and overvoltage protection, output overvoltage, overload, over-temperature, short circuit, self-diagnostic protection, etc.
Pure sine wave output offers fast transient response speed.

Specifications

Model	SDEX-5kW~500kW
Isolation mode	Low frequency transformer
DC Input
Rated voltage (VDC)	48V~850VDC (customizable)
AC Output
Power range	5kW~500kW
Voltage range	Single phase 220/230/240V or Three phase 380V/400/415/480V
Output frequency	50/60HZ±0.05
Output waveform	Pure sine wave
Waveform distortion rate (THD)	3% (linear load)
Dynamic response (0 to 100% load)	5%, ≤50ms
Power factor	0.99
Efficiency	＞93%
Overload ability	150%, 10sec
Protection
Protection functions	Input reverse polarity, under voltage, overvoltage, output overcurrent, short circuit, overheating
Display screen	LCD+LED
Operation mode	Continuous operation
Cooling method	Fan cooled
Short circuit / overload protection	No automatic recovery, need to restart the inverter
Working Environment
Degree of protection	IP54
Altitude	≤3000m (derating for above 1000m)
Working temperature	-20～+50℃
Relative humidity	0~95% non-condensing
Noise (1 meter)	≤60dB
